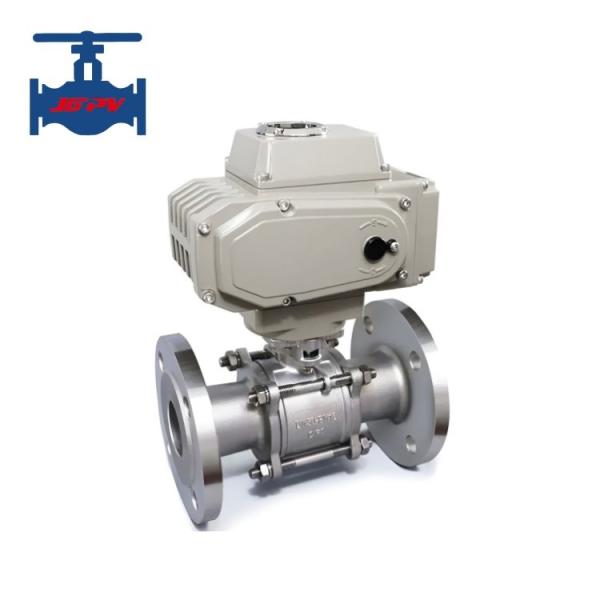

3-Piece Electric Ball Valve

Place of Origin : China

MOQ : 1set

Payment Terms : L/C,T/T,Western Union

Supply Ability : 100pcs per month

Delivery Time : 14 days

Packaging Details : Plywood box safety packing

Application : General

Medium Type : Water, steam and oil etc.

Mounting Type : Direct Mount

Standard Or Non-Standard : Standard

Flow way : two way

Actuation : Manual, Electric, Pneumatic,Automatic

Sealing Performance : Sealing

Working Temperature : Normal Temperature And High Temperature

Pressure Application : Normal Pressure

Quality Warranty : 18 Months

Contact Now

Highlight: 3-Piece Electric Ball Valve


Product introduction:


The valve body of a 3-piece ball valve is composed of one main valve body and two auxiliary valve bodies, hence the name

"3-piece ball valve". After the ball core and valve stem are installed in the main valve body, the auxiliary valve bodies are

fitted with valve seats, and the main and auxiliary valve bodies are connected into one piece by bolts. Its ball core flow

channel also has a full bore size. Ball valves are mainly used in pipelines to cut off, distribute, and change the flow direction

of media. The 3-piece ball valve is a new type of valve that is widely adopted. The main feature of a 3-piece ball valve is its

convenient online maintenance. By loosening the screws on the valve body and removing a bolt passing through the main

valve body, the main valve body can be rotated to replace the valve seat seal ring. Additionally, the main valve body bolts

can be completely removed to take out the main valve body for maintenance, while the auxiliary valve bodies remain on the

pipeline. This avoids dismantling the entire ball valve and greatly reduces maintenance workload.


Product technical parameters:


Nominal Diameter DN (mm)

50~200

Nominal Pressure PN (MPa)

1.6

Test Pressure (MPa)

Strength (water)

2.4

Enclose (Water)

1.76

Main Components

Body

WCB/CF8/CF8M

Valve ball

Stainless steel/Carbon steel

Seat

PTFE

Packing

Soft graphite

Shaft

2Cr13

Handle

Ductile iron

Working temperature

≤150℃

Medium suitable

Water, oil, steam


Product features:


1. High Reliability: The 3-piece ball valve features a compact structure, excellent sealing performance, flexible operation,

and convenient maintenance, making it highly reliable.

2. Low Flow Resistance: With a large sealing surface between the ball and the valve seat and an unobstructed flow path, it

exhibits low flow resistance and superior flow characteristics.

3. Long Service Life: The minimal friction between the ball and the valve seat ensures a long service life.

4. Full Open/Full Close Functionality: The 3-piece ball valve can achieve full open and full close operations, facilitating

precise control of medium flow.

5. Wide Applicability: It is suitable for special working conditions such as high temperature, high pressure, and corrosion

resistance, demonstrating excellent adaptability.
